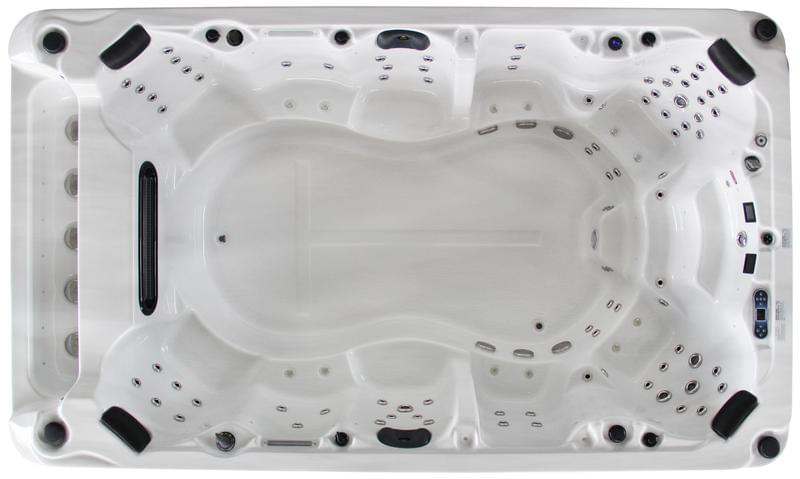

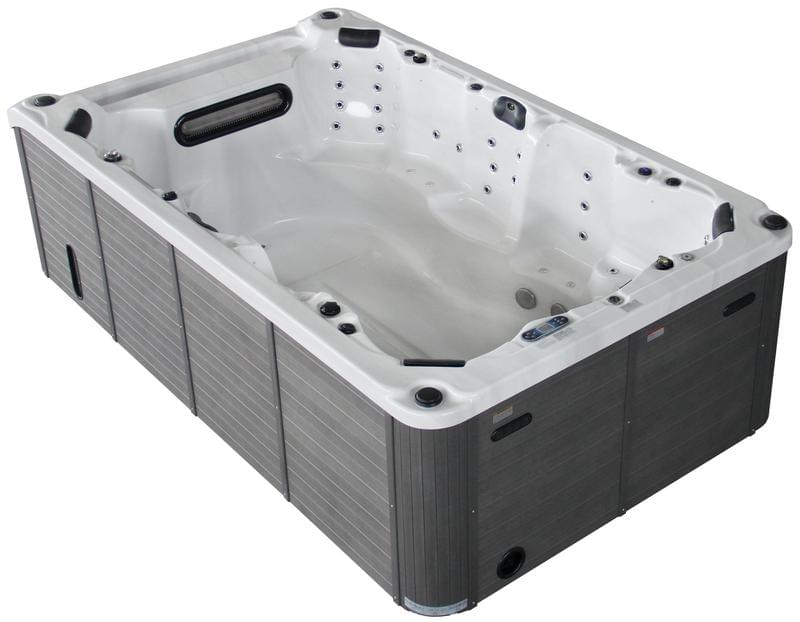

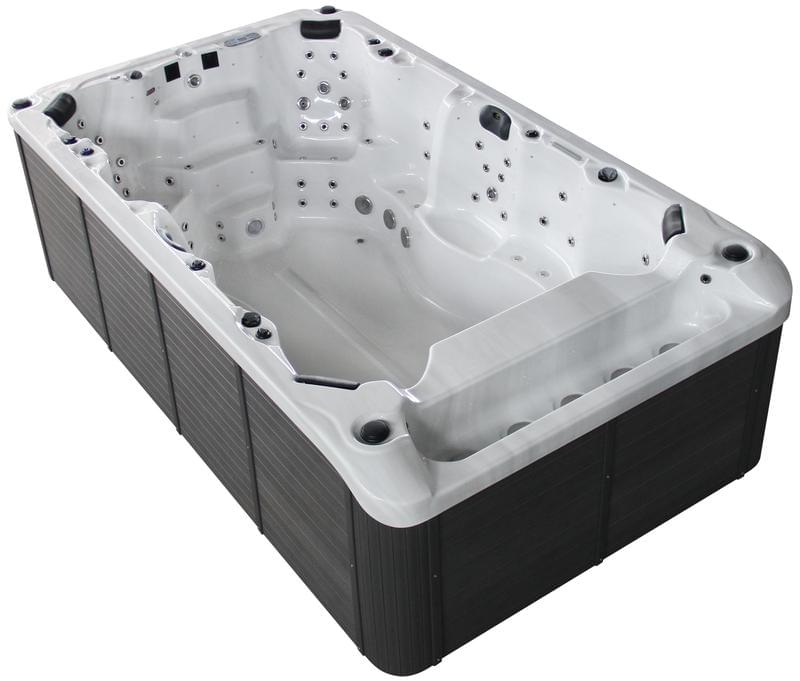

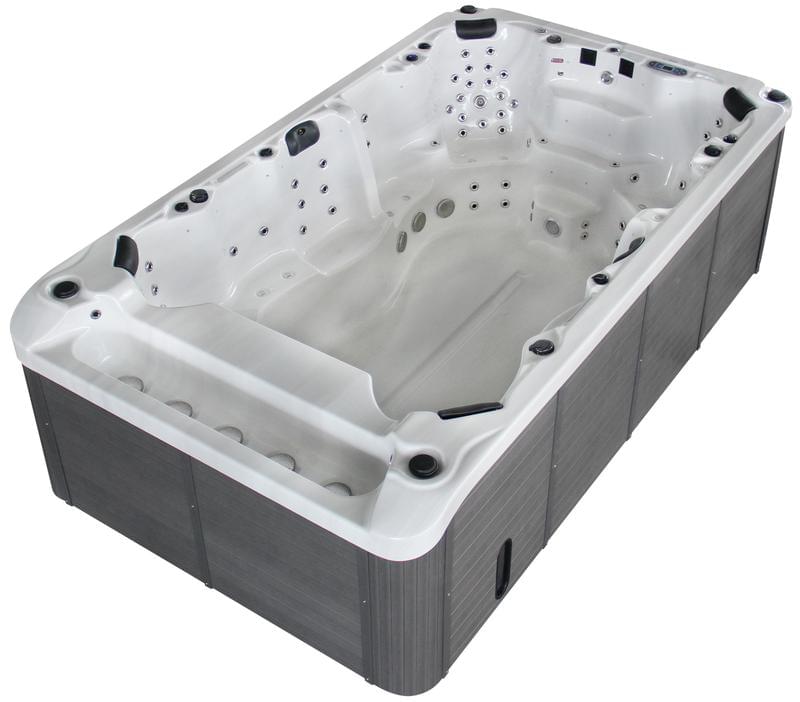

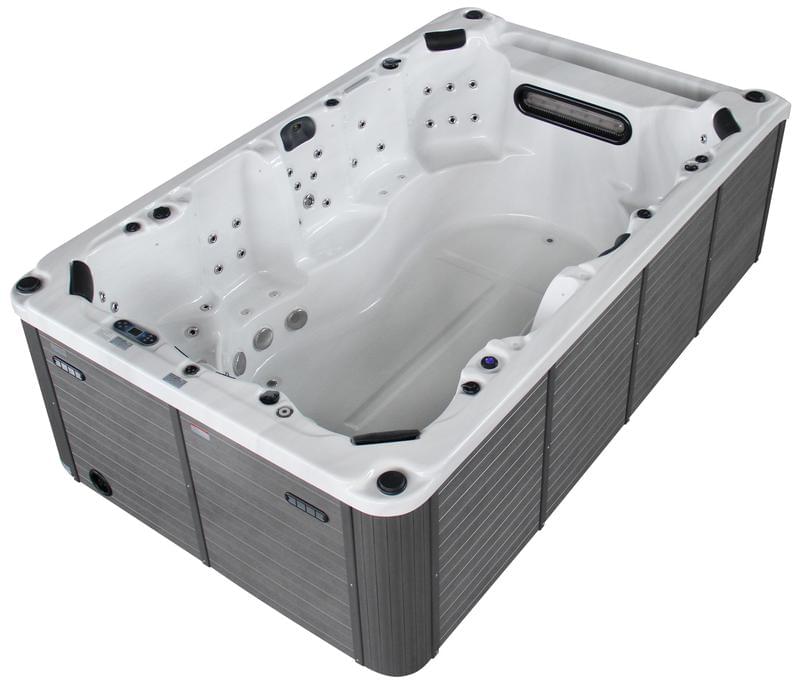

Small swim spa pool - 8803 with one super swim jet

  • Shining outdoor
  • China
  • 45 days for 40HC container
  • 3000sets/month
SPECIFICATION: Exterior dimensions: 3950*2280*1100 (depth)/1220mm Seating capacity: 10-11persons Water capacity: 4940L(pool) Dry weight: 950kgs Shell (12mm): USA Aristech Acrylics (4 colors available) 304 stainless steel frame: 1set Skirt: maintenance free PS cabinet (5 colors available) High-density polyurethane insulation foam: yes PACKING INFORMATION: Packing: waterproof woven bag with steel pallet Packing size: 4000*2310*1370mm Quantity of 20’/40’HC container: 1pcs/ 3-6pcs

Below is the color option for H-07 (oceanwave) swim spa

POWER SUPPLY:

¨ Electricity supply: 220V/50-60Hz or 380V/50-60Hz

¨ Maximum current: 69A

CONFIGURATION:

¨ Total quantity of jets (304 stainless steel): 101pcs

-Hydromassage jets:88pcs

-Directional river swim jets: 1pc

-Air nozzles: 12pcs

¨ Controller for massage: BALBOA (BP6013G2 + TP600)

¨ Controller for swimming: 1 set

¨ Automatic water-adding system: 1 set

¨ Circulation pump: 1x0.5HP

¨ Swim pump: 3x3HP

¨ Hydromassage pump: 2x3HP

¨ Air blower: 1x700w

¨ Heater (Balboa): 1x3kw

¨ CD ozonizer: 1x1000mg/h

¨ Ozone injector and mixer: 1 set

¨ Perimeter LED lights: 47pcs

¨ 304 stainless steel water tank: 2pcs

¨ High-effective Pressure filter cartridge: 1pc

¨ Normal headrest: 2pcs

¨ Pop-up EVA headrest: 2pcs

¨ Heat-releasing grille: 2pcs

¨ Air valve: 5pcs

¨ Water diverter valve: 1pc

¨ Water tank exhaust vent: 2pcs

¨ Spa bottom drain: 2pcs

¨ Drain valve: 2pcs

¨ Heavy-duty insulation cover: 2pcs (8 colors available)

¨ FRP sealed bottom base: 1pc
