Small swim spa - 8802
- Shining outdoor
- China
- 45 days for 40HC container
- 3000sets/month
SPECIFICATION:
Exterior dimensions: 3960*2300*1380 (depth)/1500mm
Seating capacity: 3-5persons
Water capacity: 6120L(pool)
Dry weight: 890kgs
Shell (12mm): USA Aristech Acrylics (4 colors available)
304 stainless steel frame: 1set
Skirt: maintenance free PS cabinet (5 colors available)
High-density polyurethane insulation foam: yes
PACKING INFORMATION:
Packing: waterproof woven bag with steel pallet
Packing size: 4000*2320*1620mm
Quantity of 20’/40’HC container: 1pcs/ 3pcs
Below are 2 more colors for the shell:
With H-03 midnight opal:
With H-07 oceanwave:
POWER SUPPLY:
¨ Electricity supply: 220V/50-60Hz or 380V/50-60Hz
¨ Maximum current: 54A
CONFIGURATION:
¨ Total quantity of jets (304 stainless steel): 46pcs

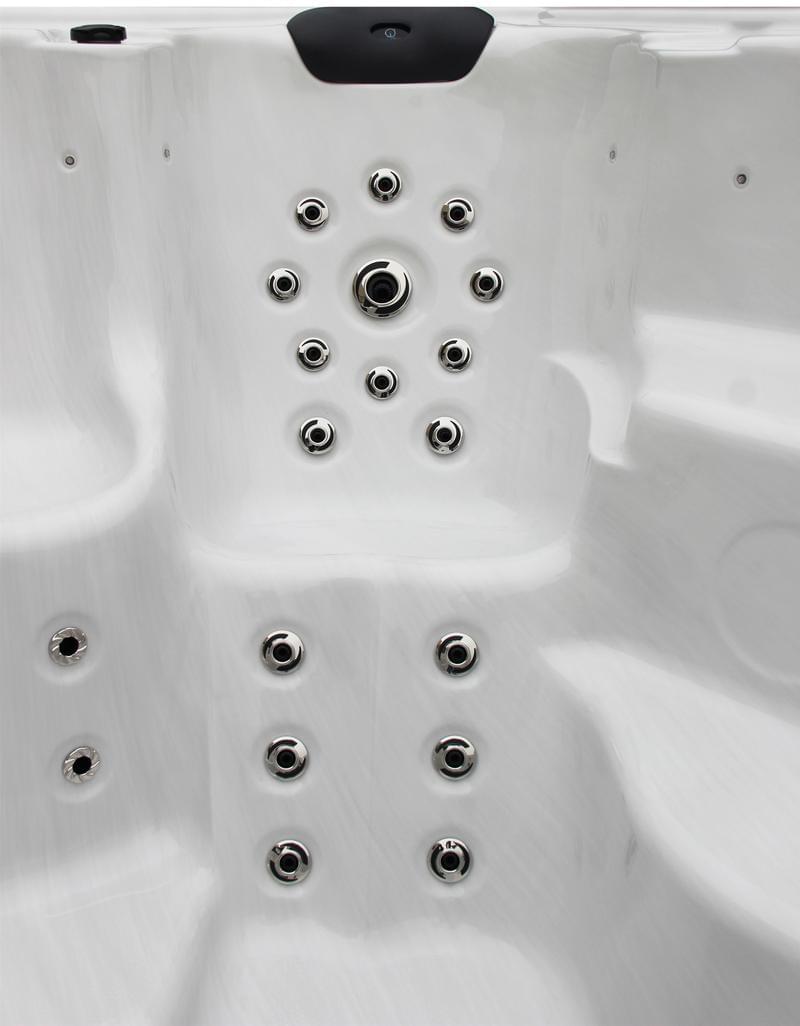

-Hydromassage jets:43pcs
-Directional oval swim jets: 3pcs
¨ Control system: BALBOA (BP6013G3 + TP600)
¨ Circulation pump: 1x0.5HP
¨ Swim pump: 3x3HP
¨ Hydromassage pump: 1x2HP
¨ Heater (Balboa): 1x3kw
¨ CD ozonizer: 1x1000mg/h
¨ Ozone injector and mixer: 1 set
¨ Perimeter LED lights: 32pcs
¨ Paper filter: 4pcs
¨ Headrest: 2pcs
¨ Heat-releasing grille: 2pcs
¨ Air valve: 4pcs
¨ Cabinet drain valve: 3pcs
¨ Spa bottom drain: 1pc
¨ Heavy-duty insulation cover: 2pcs (8 colors available)
¨ FRP sealed bottom base: 1pc
