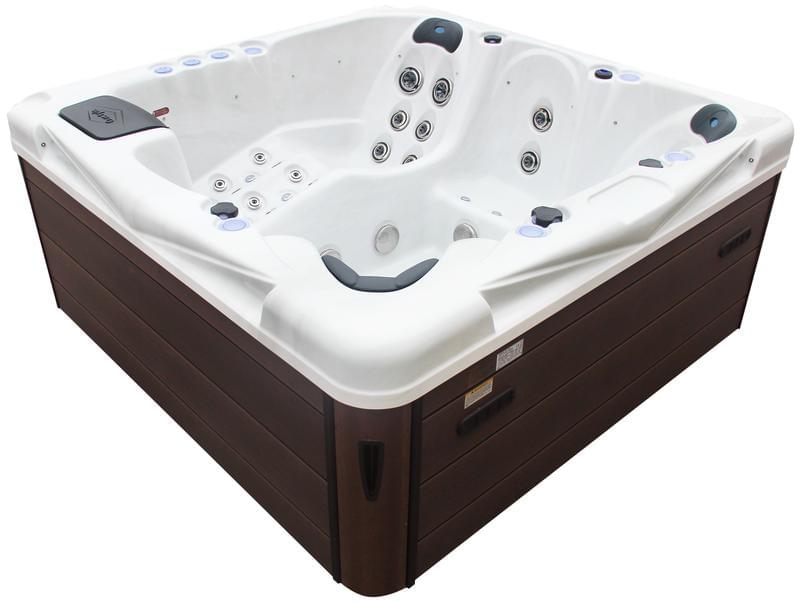

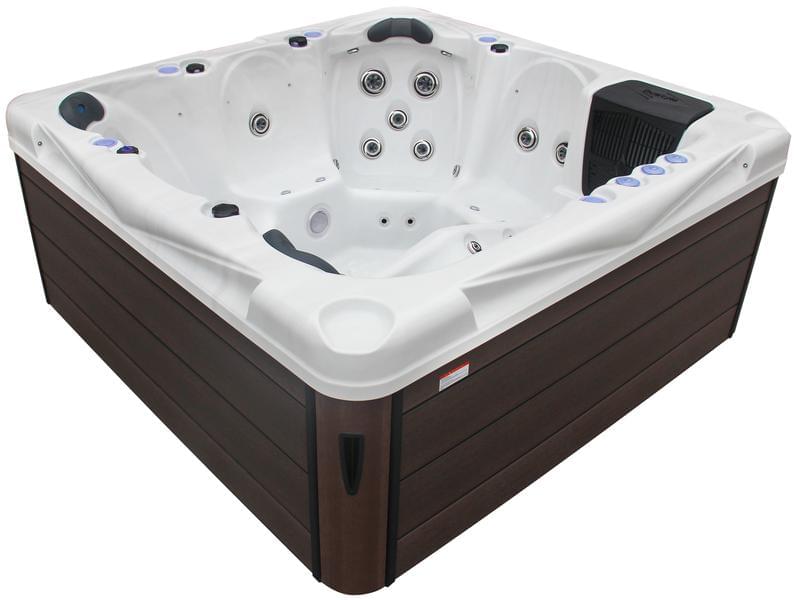

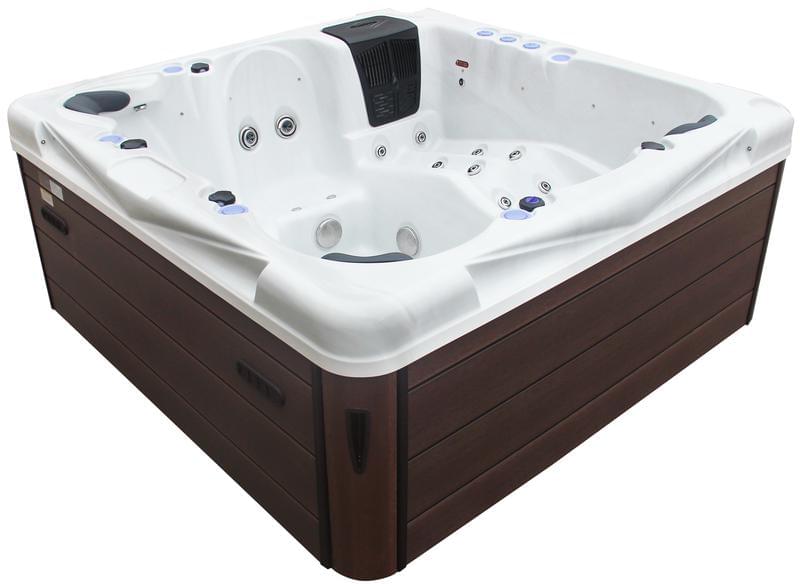

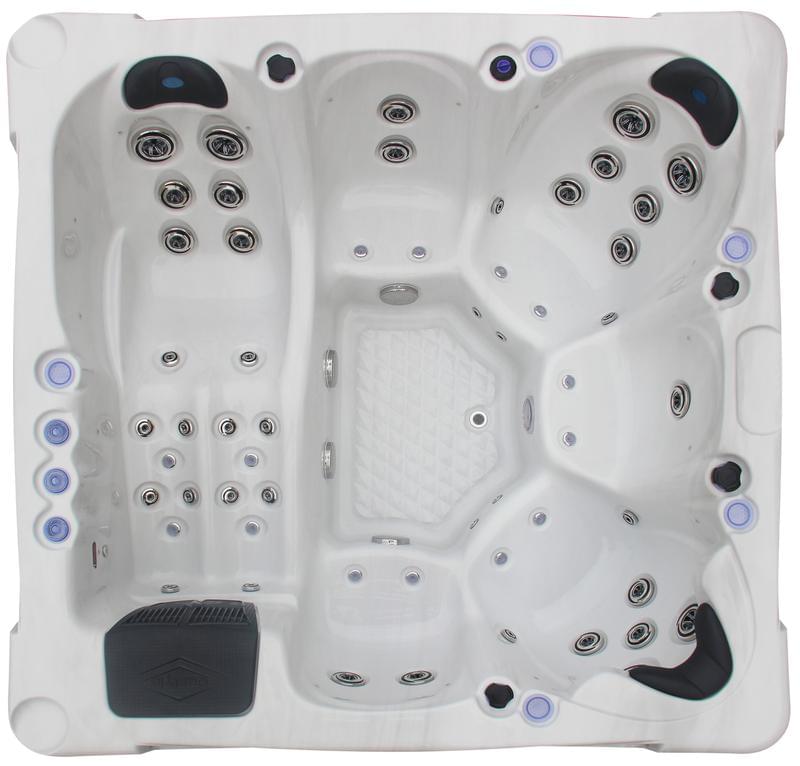

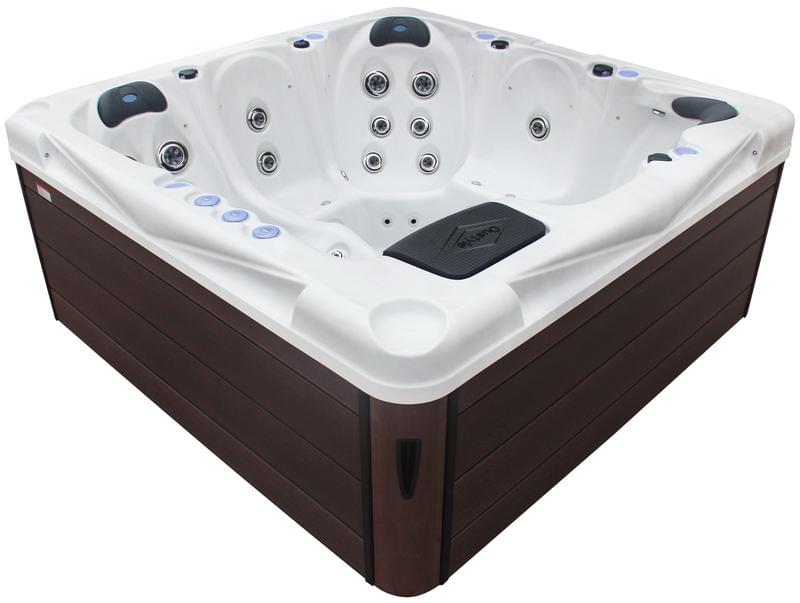

6 person square hot tub - 1101

ELECTRICS:

¨ Power supply: 220V/50-60Hz or 380V/50-60Hz

¨ Maximum current: 39A or 25A (with interlock system)

¨ Control system: USA BALBOA (BP6013G2 + TP600)

¨ Energy-saving circulation pump: 1x0.35HP

¨ Massage water pump: 2x3HP

¨ Air blower: 1x700w

¨ Heater (USA Balboa): 1x3kw

¨ CD ozonizer: 1x50mg/h

¨ Color-changing LED lights: 29pcs

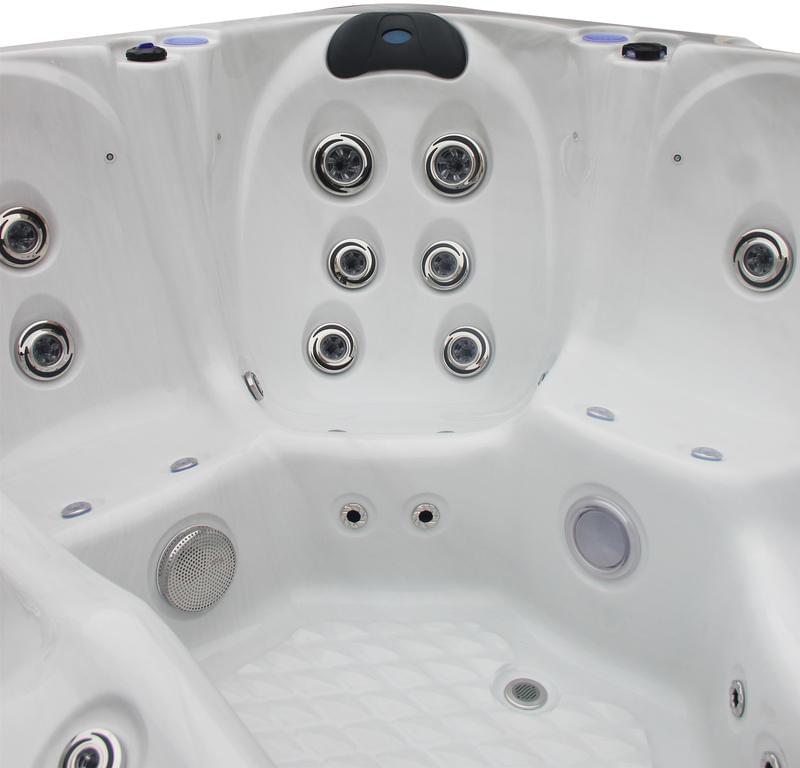

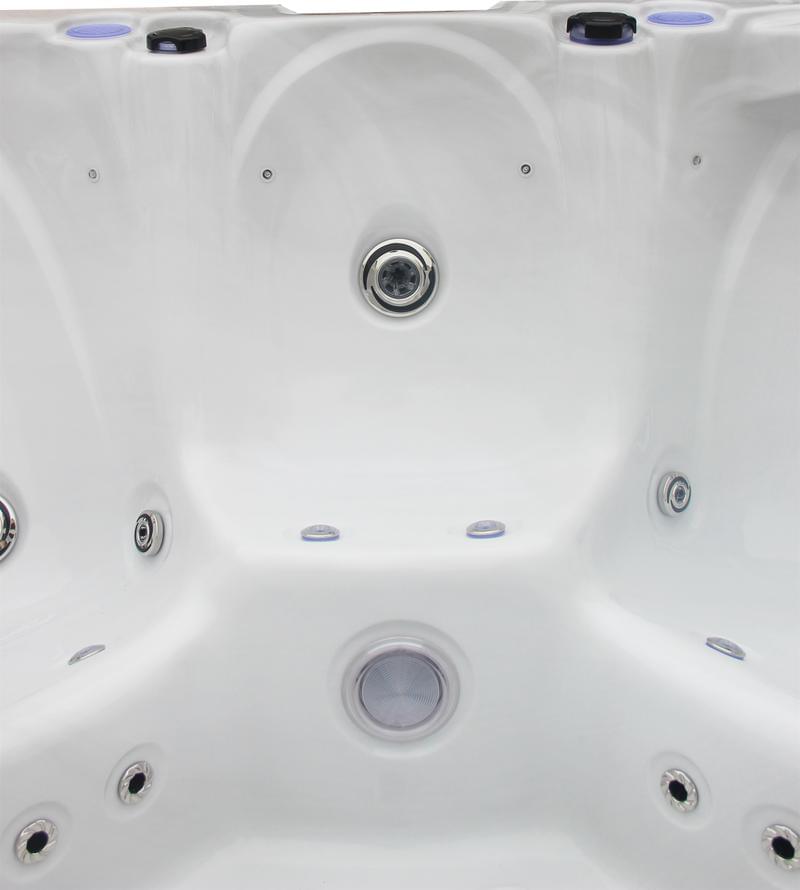

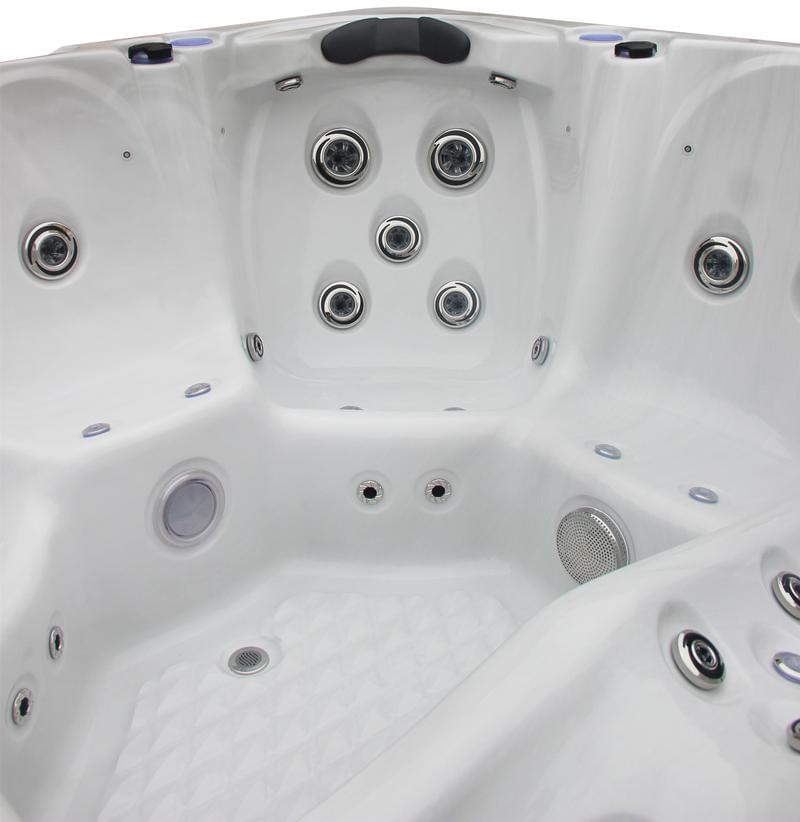

JET CONFIGURATIONS:

¨ Total quantity of jets (304 stainless steel trim): 58pcs

¨ 5” hydrotherapy jets: 6pcs

¨ 3.5” hydrotherapy jets: 16pcs

¨ 2” hydrotherapy jets: 18pcs

¨ 1” circulation jets: 4pcs

¨ Air nozzles: 14pcs

STRUCTURE & PLUMBING:

¨ Shell (8mm): USA Aristech Acrylics (12 colors available)

¨ High-density PU insulation foam on shell: 25mm

¨ Skirt: maintenance-free PS panel (5 colors available)

¨ Aluminum foil insulation on skirt panel: 15mm

¨ Spa cover (10*6cm): 1pc (8 colors available)

¨ Supporting frame: stainless steel

¨ Ozone injector and mixer: 1 set

¨ Automatic air escape system: 1 set

¨ Paper filter: 2pcs

¨ Headrest with logo and LED lights: 3pcs

¨ Heat-releasing grille: 2pcs

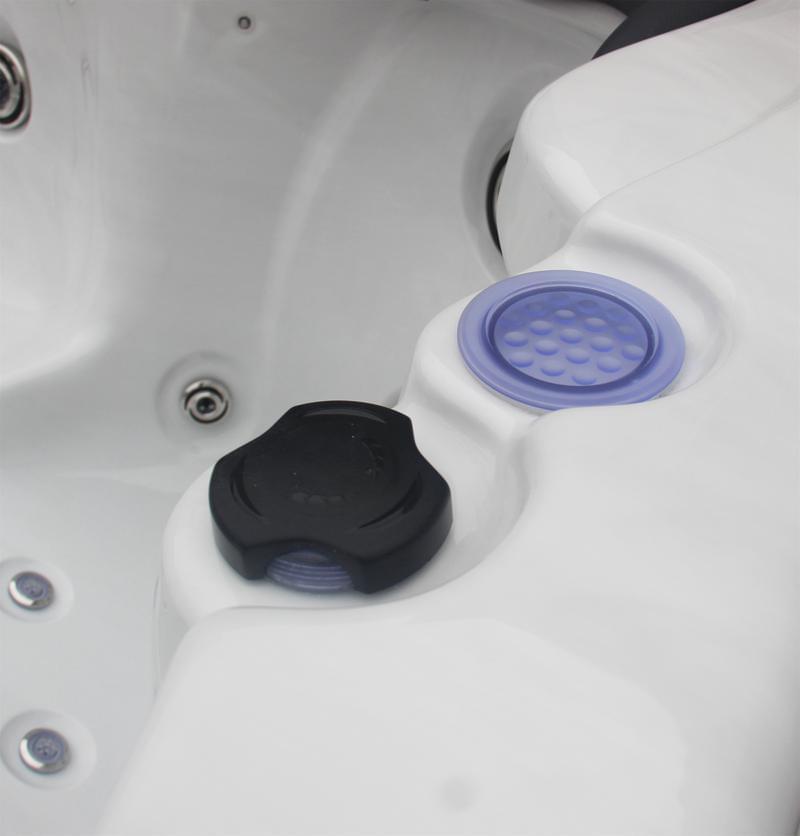

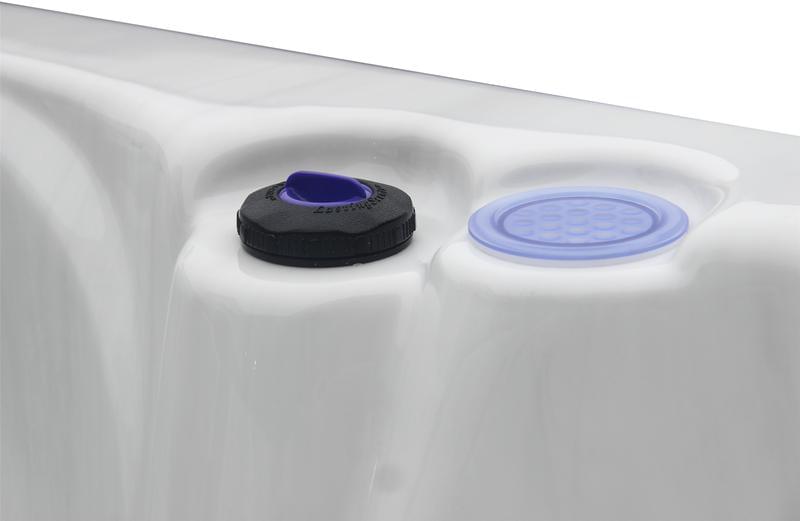

¨ Air valve: 3pcs

¨ Corner drain valve: 1pc

¨ Spa bottom drain: 1pc

¨ ABS bottom base (5mm): 1pc

SELLING POINTS:

¨ 100% no-leaking plumbing

¨ Independent filtration system

¨ Quiet and energy-saving circulation system

¨ Exclusive plumbing for complete water draining of pipes

¨ Automatic air escape system

¨ Automatic anti-freezing system

¨ Automatic water-shortage protection system

¨ Automatic overvoltage protection system

¨ Foot massage

¨ Shoulder and neck massage
