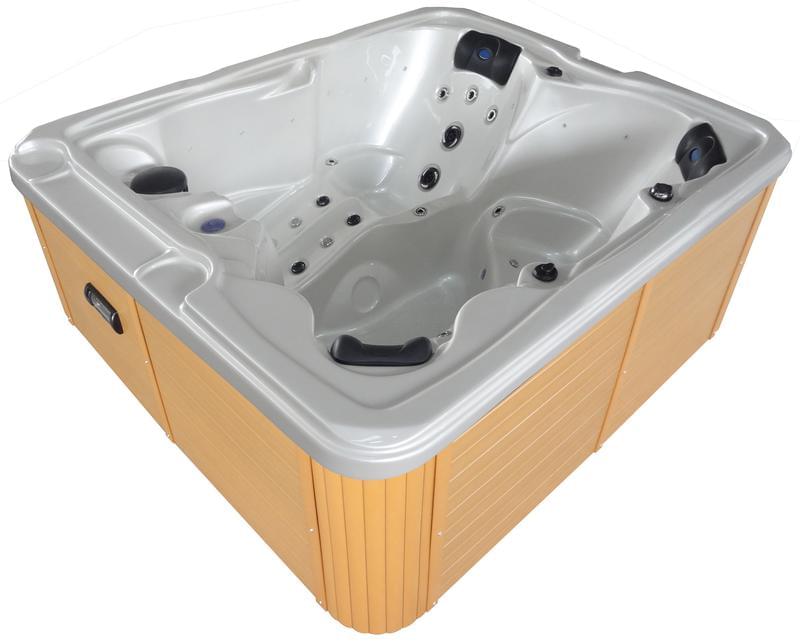

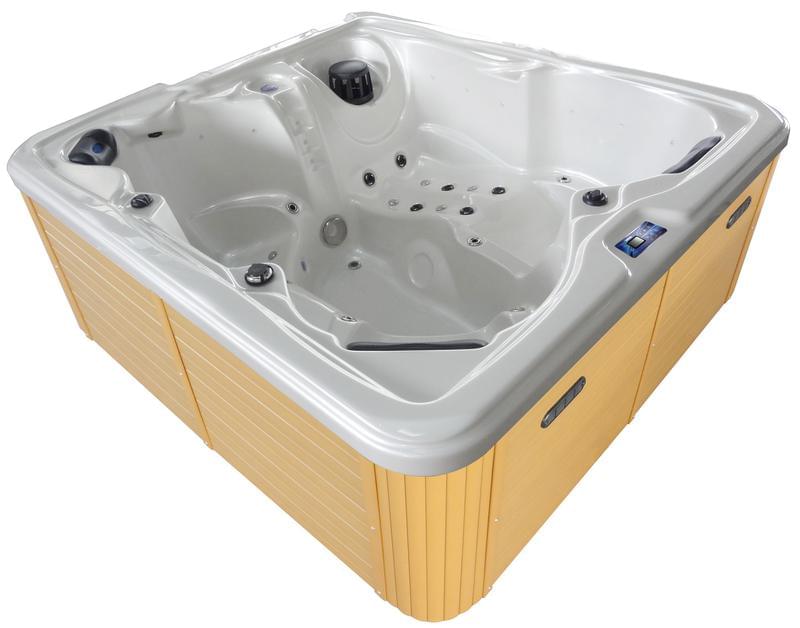

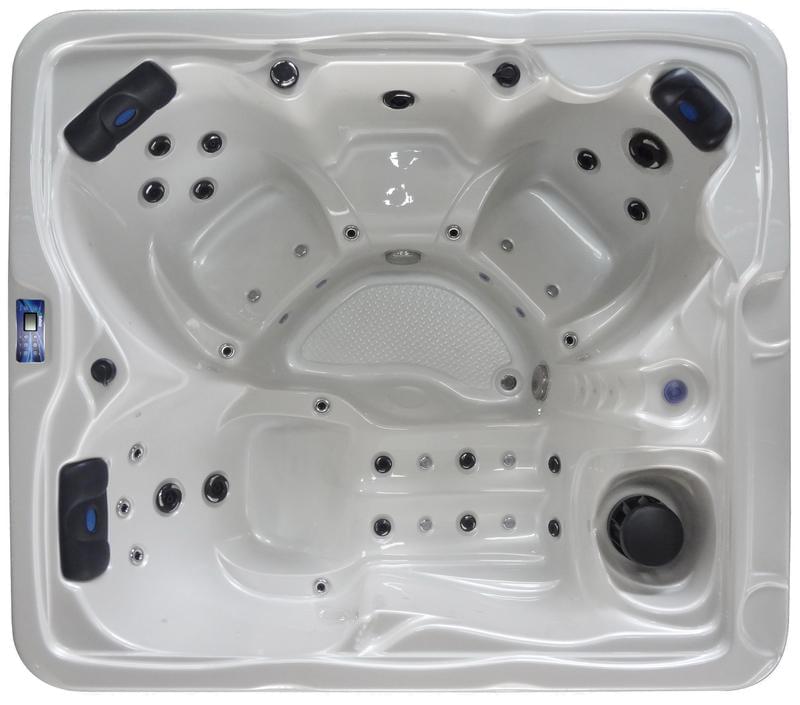

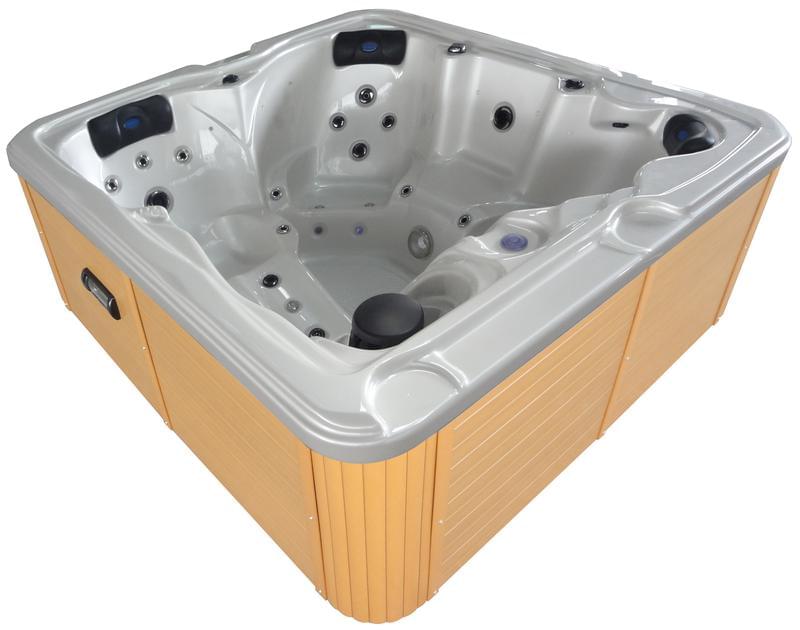

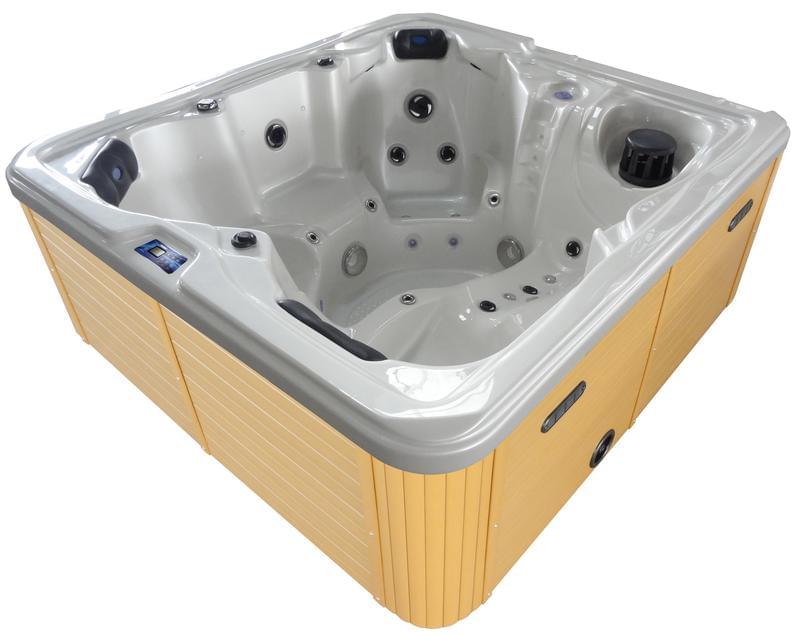

4 person affordable hot tub - 5801B

Below are 3 more colors for the shell:

With H-03 (midnight opal)：

With  H-02 (summer sapphire):

With H-08 (saharal):

ELECTRICS:

¨ Power supply: 220V/50-60Hz or 380V/50-60Hz

¨ Maximum current: 28A or 14A (with interlock system)

¨ Control system: USA BALBOA (BP6013G1 + TP400)

¨ Energy-saving circulation pump: 1x0.35HP

¨ Massage water pump: 1x3HP

¨ Air blower: 1x400w

¨ Heater (USA Balboa): 1x3kw

¨ CD ozonizer: 1x50mg/h

¨ Color-changing LED lights: 24pcs

JET CONFIGURATIONS:

¨ Total quantity of jets (304 stainless steel trim): 39pcs

¨ 5” hydrotherapy jets: 1pc

¨ 3.5” hydrotherapy jets: 4pcs

¨ 3” hydrotherapy jets: 5pcs

¨ 2” hydrotherapy jets: 8pcs

¨ 1.5” hydrotherapy jets: 9pcs

¨ 1” circulation jets: 4pcs

     Air nozzles: 8pcs

STRUCTURE & PLUMBING:

¨ Shell (8mm): USA Aristech Acrylics (12 colors available)

¨ High-density PU insulation foam on shell: 25mm

¨ Skirt: maintenance-free PS panel (5 colors available)

¨ Aluminum foil insulation on skirt panel: 15mm

¨ Spa cover (10*6cm): 1pc (8 colors available)

¨ Supporting frame: stainless steel

¨ Ozone injector and mixer: 1 set

¨ Automatic air escape system: 1 set

¨ Paper filter: 1pc

¨ Headrest with logo and LED lights: 3pcs

¨ Heat-releasing grille: 2pcs

¨ Air valve: 2pcs

¨ Fountain switch: 1pc

¨ Corner drain valve: 1pc

¨ Spa bottom drain: 1pc

¨ ABS bottom base (5mm): 1pc

¨ Pop-up fountain with LED lights: 1pc

SELLING POINTS:

¨ 100% no-leaking plumbing

¨ Independent filtration system

¨ Quiet and energy-saving circulation system

¨ Exclusive plumbing for complete water draining of pipes

¨ Automatic air escape system

¨ Automatic anti-freezing system

¨ Automatic water-shortage protection system

¨ Automatic overvoltage protection system

¨ Foot massage
